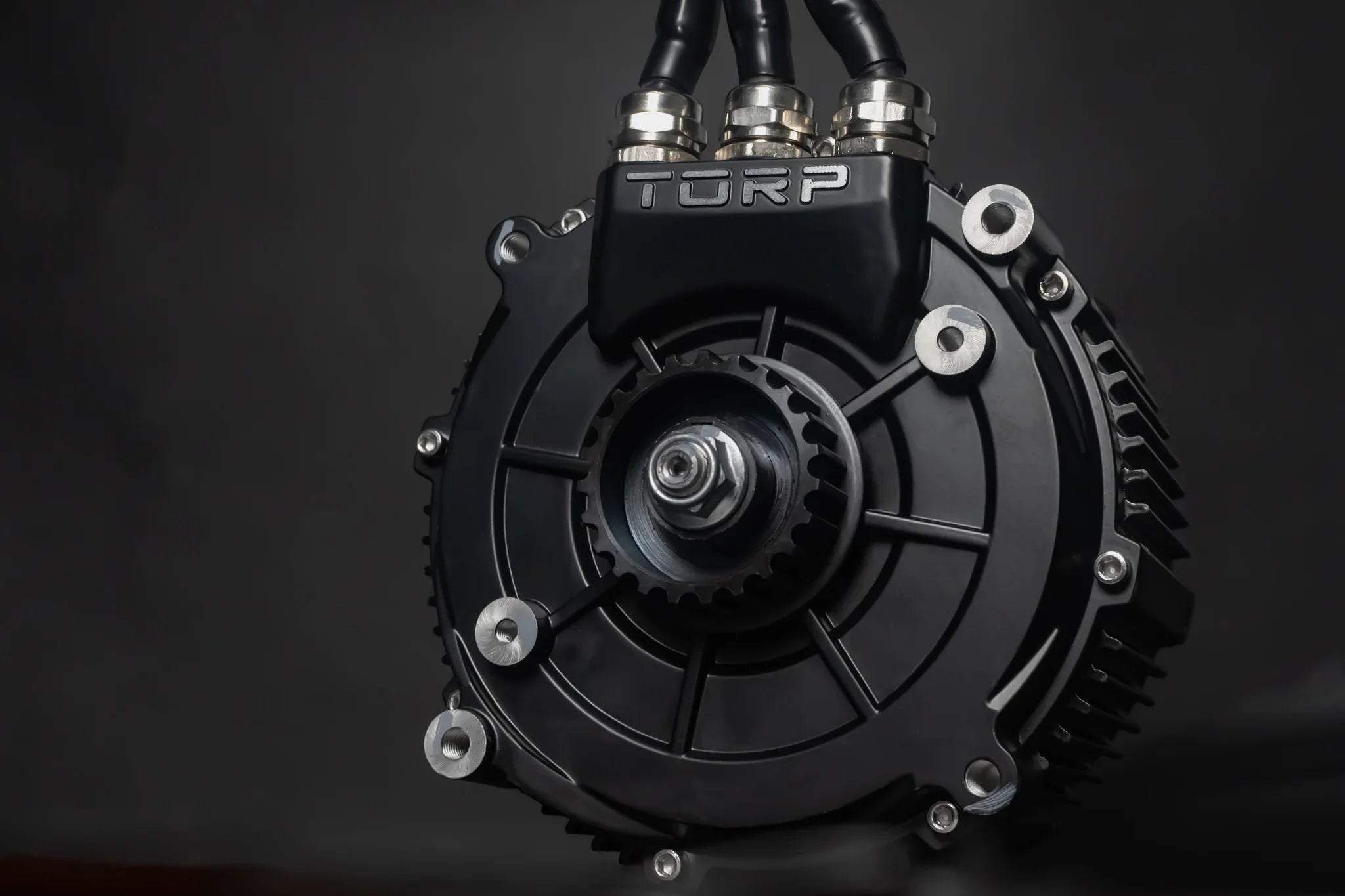

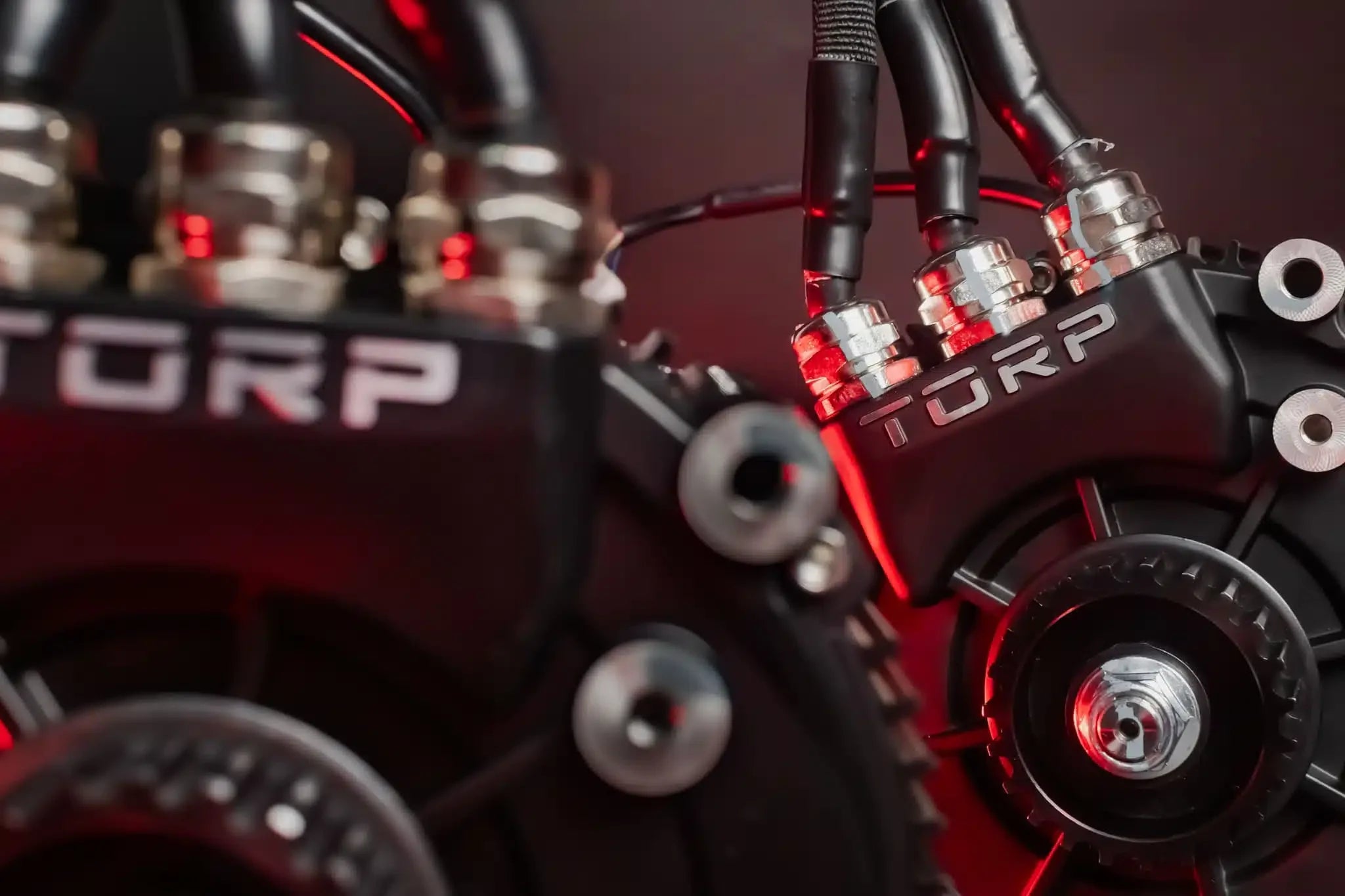

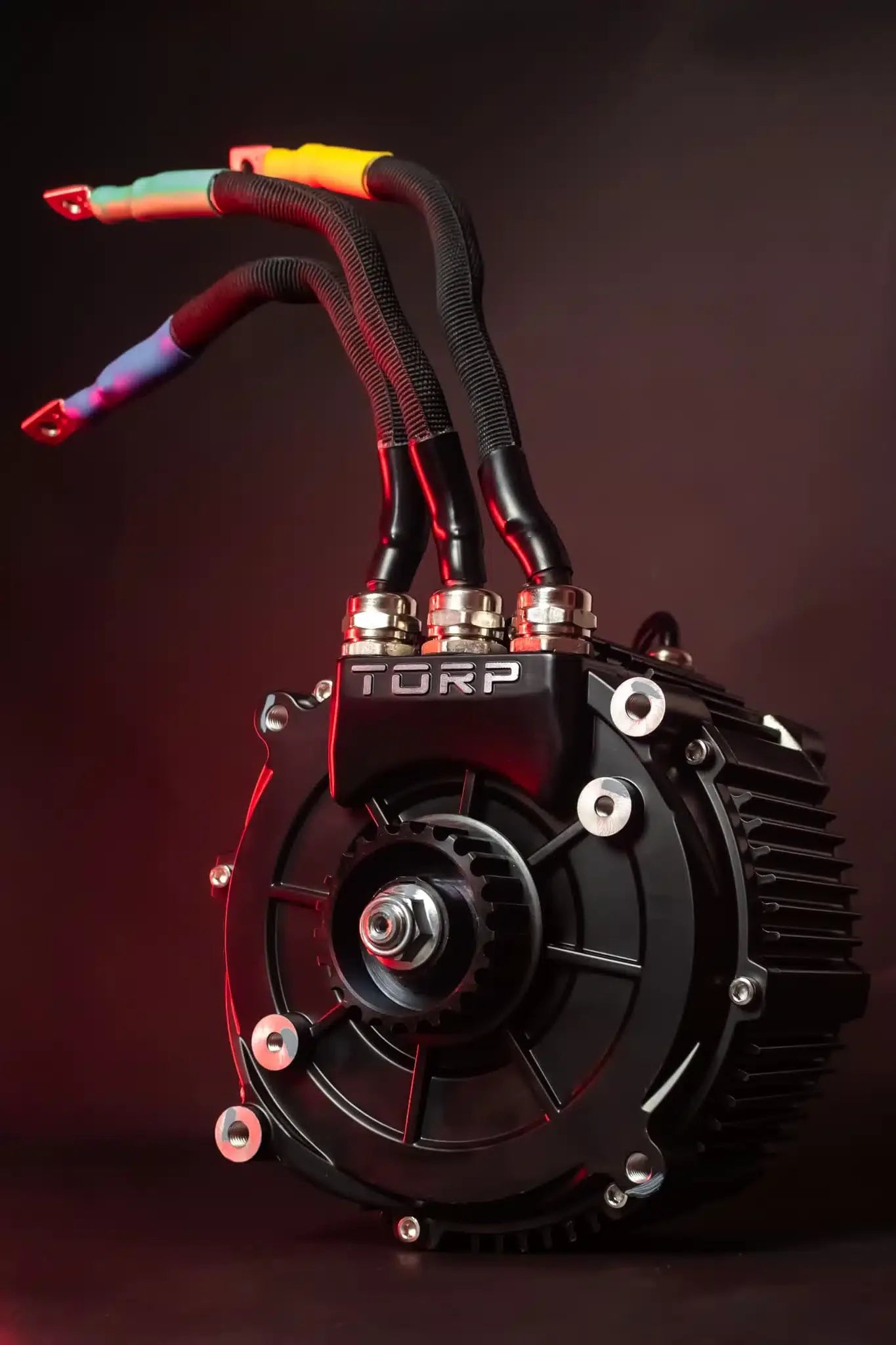

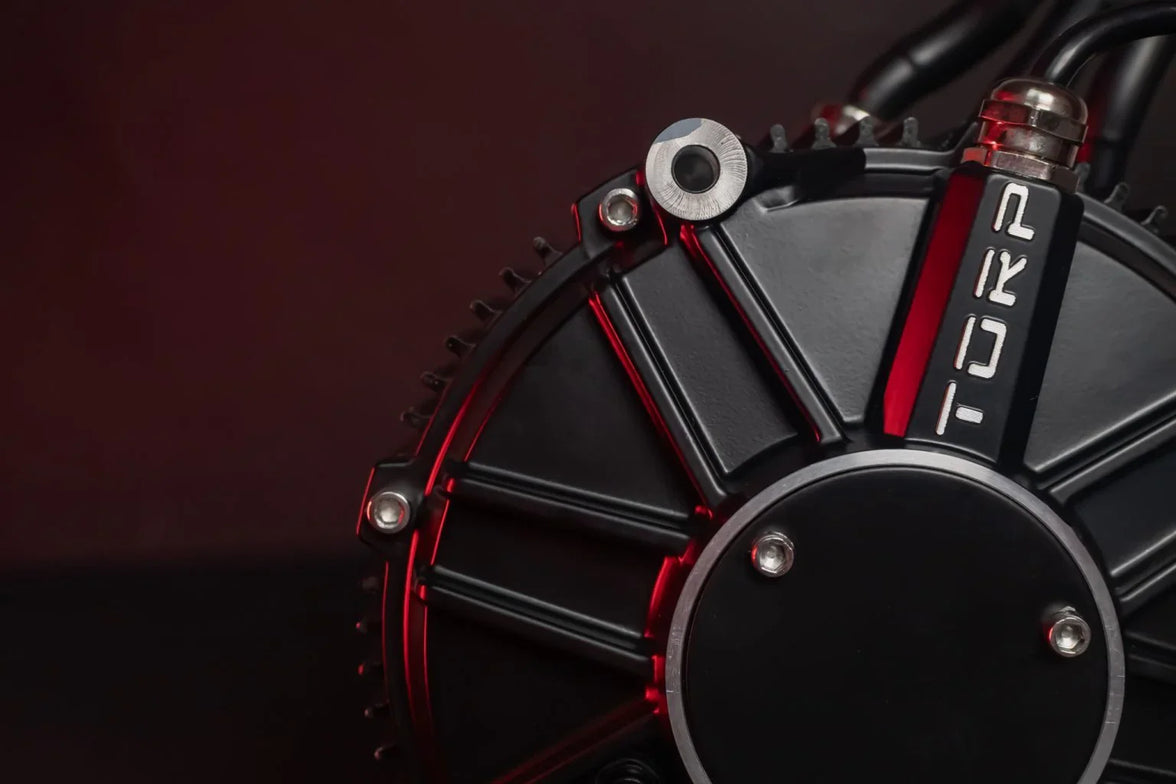

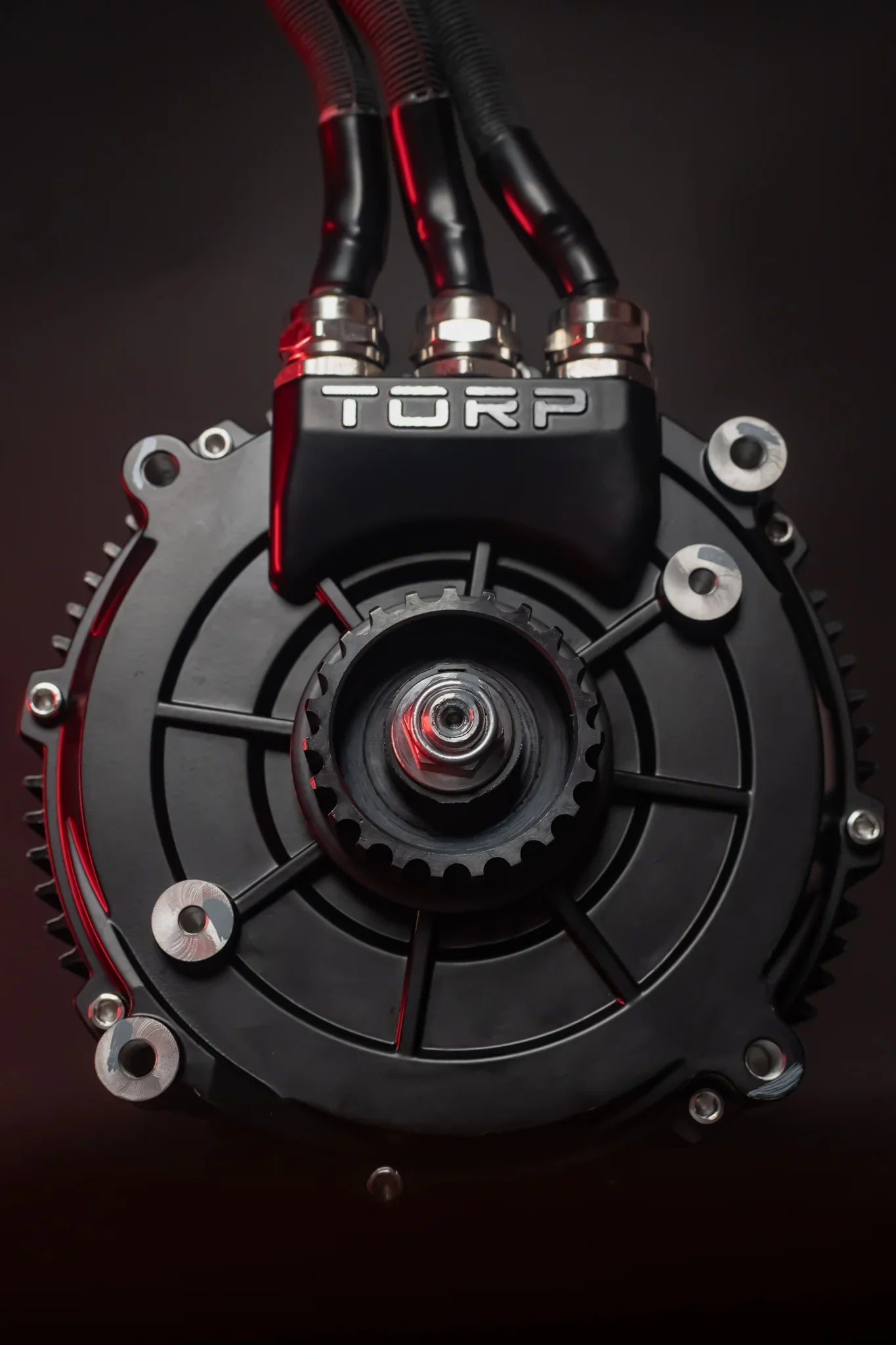

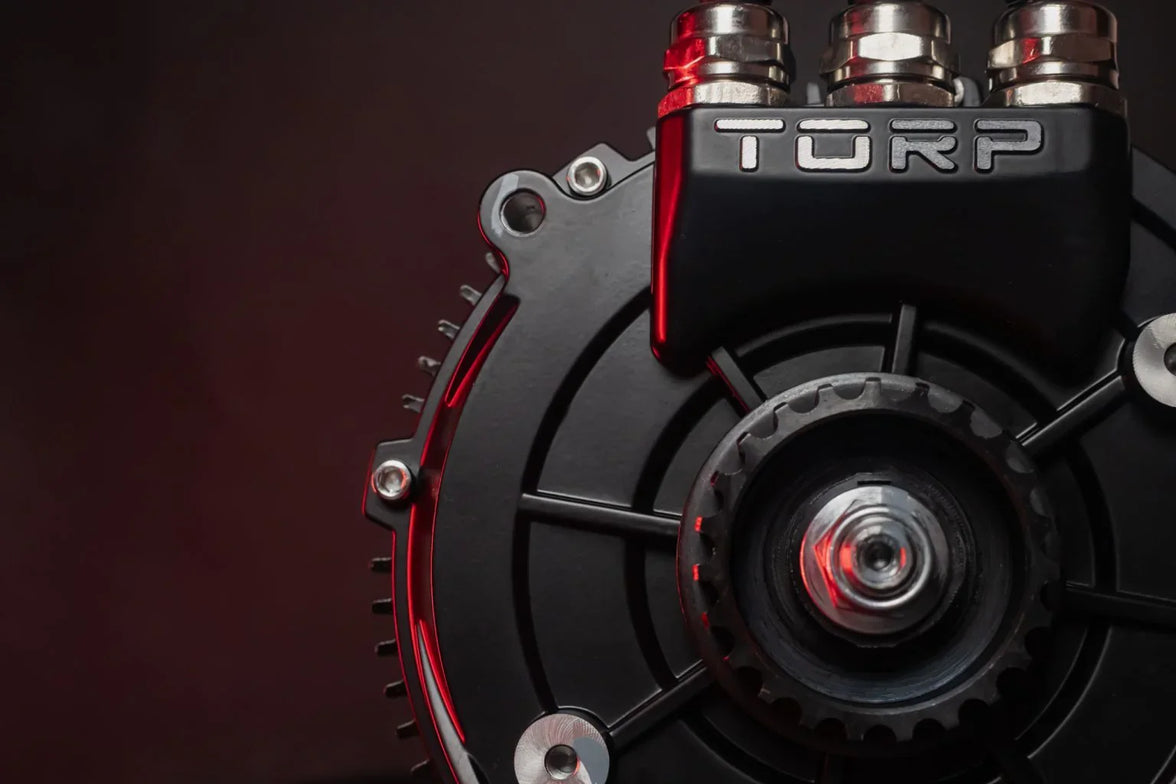

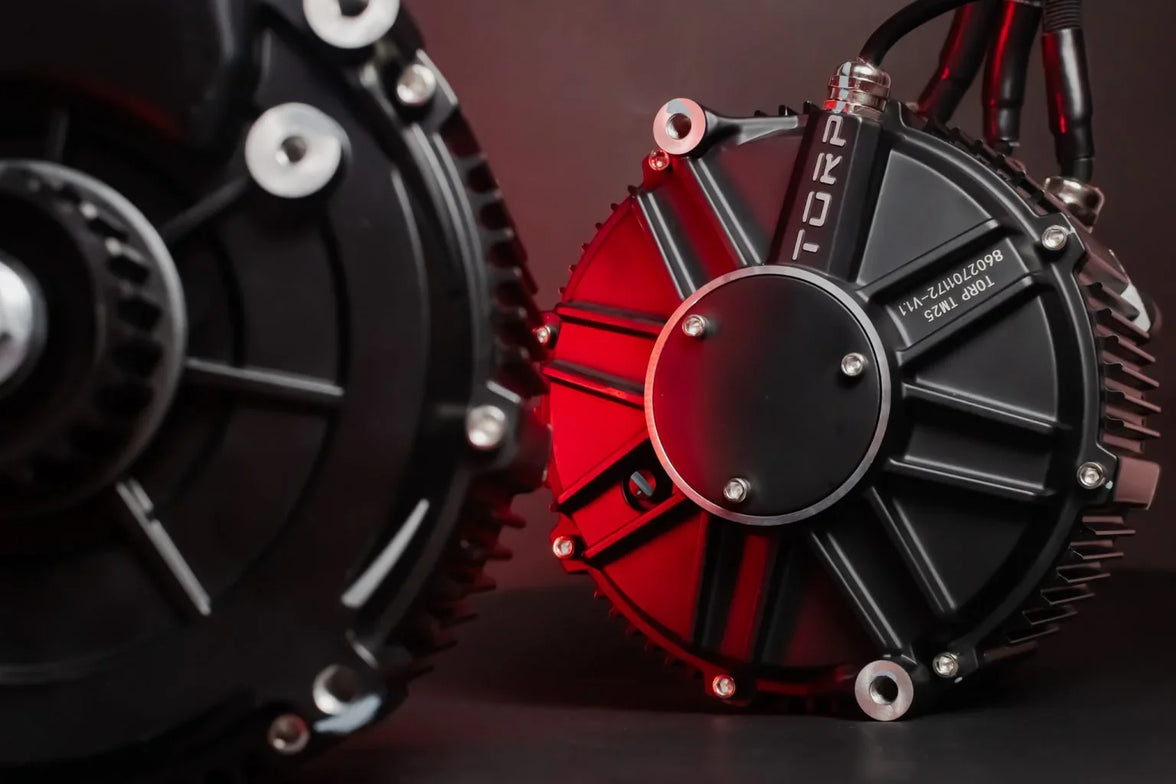

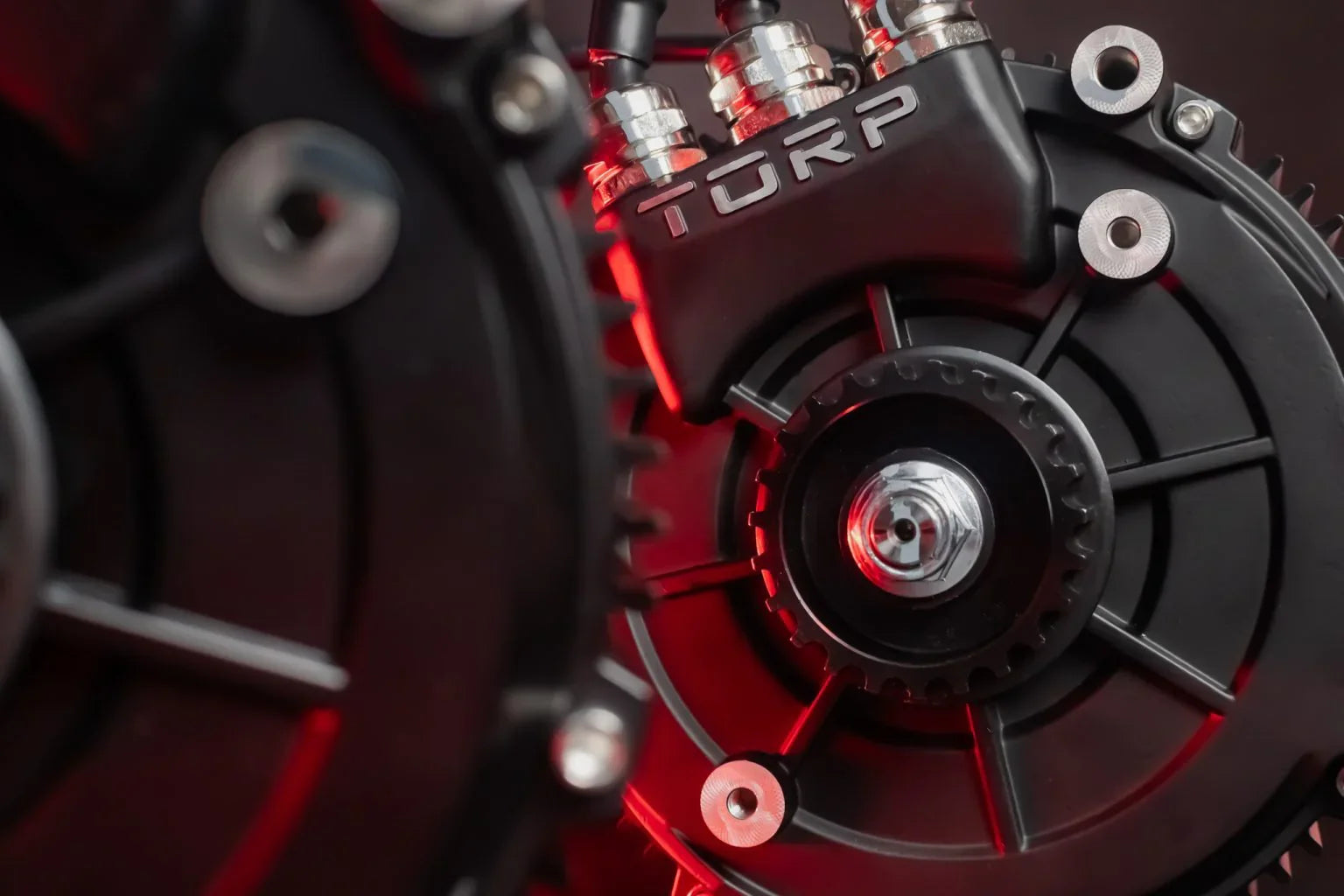

What makes the TM25 motor unique?
-Various mounting points make it possible to be used with other electric vehicles
-Works with Hall sensors and encoder, which makes it compatible with different controllers
-Has 3 times less resistance compared to the stock SurRon motor.
-Compatible both with the TC500* 1.X/2.X and TC1000 1.X/2.X controller
*IMPORTANT: TM25 motor is NOT COMPATIBLE with Torp TC500 controller HW 1.0, 1.1. and 1.2. HW version of your controller is written on the silver sticker at the side of the controller. In case you own one of these versions and wish to buy the TM25 motor, please contact us directly.
Torp-Crafted, Universally Compatible.
Although the TORP TM25 Motor has been developed with the Torp Controllers in mind, this motor can be easily used with other controller brands, as well as mounted on various vehicles.
– DEVELOPED FOR SURRON LIGHTBEE, WITH MOUNTING OPTIONS FOR OTHER VEHICLES.
– HALL SENSOR OR ENCODER? WORKS WITH BOTH!
– 3-TIMES LESS RESISTANCE COMPARED TO THE STOCK SURRON MOTOR.
*TM25 is compatible with the TC500 controller HW version 1.3 and up.
Technical specifications:
- Motor type: IPM
- Voltage: 48V – 120V
- Continuous Power: 13 kW
- Peak Power:
on 72V – 27 kW
on 80V – 31 kW
on 120V – 40 kW
- Rated Speed: 6000 RPM
- Max RPM: 10 000 RPM
- Position sensor: Hall sensor or Encoder
- Encoder points: 1024 (4096)
- Max magnet temp: 150 C
- Phase current: up to 800 A
- Kt constant [Nm/A]: 0.105
- Torque 500 A: 52.5 Nm
- Torque 700 A: 67 Nm
- KV rating: 85
- Motor Resistance: 3,4 mO
- Temp. sensor: PT1000
- Efficiency: up to 95%
- Protection class: IP67*
- Weight: 10 kg
- Motor Size: 115*165 mm
- Installation: Mid
- Number of pole pairs: 5
- Cooling method: Air
*Our products have an IP67 rating, achieved by testing in distilled water under laboratory conditions. Please note that this rating does not imply suitability for continuous underwater use as it may result in damage. Additionally, the connectors on the product are not waterproof and must be kept dry to ensure proper functionality and safety. The warranty does not cover malfunction or damage arising from the use of the products in activities where frequent or extended submersion in water is expected, such as riding in streams, rivers, or flooded areas. Over time, seals and components may degrade, reducing the water-resistant effectiveness of the product. Damage resulting from this natural wear and tear is not covered by the 2-year warranty.
